TradingView MACD: Honest Settings Guide (2026)
Affiliate Disclosure: This article contains affiliate links. If you sign up for TradingView through a link on this page, I may earn a commission at no extra cost to you. I only recommend tools I have researched and believe are relevant to the reader’s use case.
Trading involves risk. This article is for educational purposes only and is not financial advice. Technical analysis tools do not guarantee profitable results. Past performance is not indicative of future results. Always manage your risk appropriately.
Last verified: August 2026, using TradingView’s official documentation and indicator library.
TradingView MACD is one of the most widely used momentum indicators on the platform, built in and free on every plan including Basic. I am Andreas Maratheftis, and after 30 years in professional finance I can tell you that MACD is simple to add and deceptively easy to misread, because it is a lagging indicator built from moving averages — it confirms momentum shifts after they have already begun, not before. This guide covers exactly how to add MACD on TradingView, the formula behind it, how to read crossovers and divergence correctly, and the honest limitation that catches most traders who expect it to call tops and bottoms.
Key Takeaways
- MACD is a free, built-in TradingView indicator measuring the relationship between two exponential moving averages (default 12 and 26 periods)
- A signal line (9-period EMA of the MACD line) generates crossover signals; the histogram shows the distance between the two
- MACD is a lagging indicator — it confirms momentum shifts after they begin, it does not predict them
- Divergence between MACD and price is a useful warning signal, not a standalone trade trigger
- Match the timeframe to your holding period: 15M–1H for day trading, 4H–Daily for swing trading, Daily–Weekly for position trading
Quick Answer
MACD (Moving Average Convergence Divergence) is a built-in, free TradingView indicator that plots the difference between a 12-period and 26-period EMA (the MACD line), a 9-period EMA of that line (the signal line), and a histogram showing the gap between them. A bullish crossover — MACD line crossing above the signal line — suggests strengthening upward momentum. A bearish crossover suggests strengthening downward momentum. It is a lagging indicator built from moving averages, so signals confirm a shift that has already begun rather than predicting one in advance.
Open TradingView free and add MACD to any chart today.
What Is MACD and How Does It Work?
The name stands for Moving Average Convergence Divergence. MACD measures the relationship between two exponential moving averages of different lengths — a faster one and a slower one. When the faster EMA moves away from the slower EMA, momentum is building in that direction. When the two converge back together, momentum is fading.

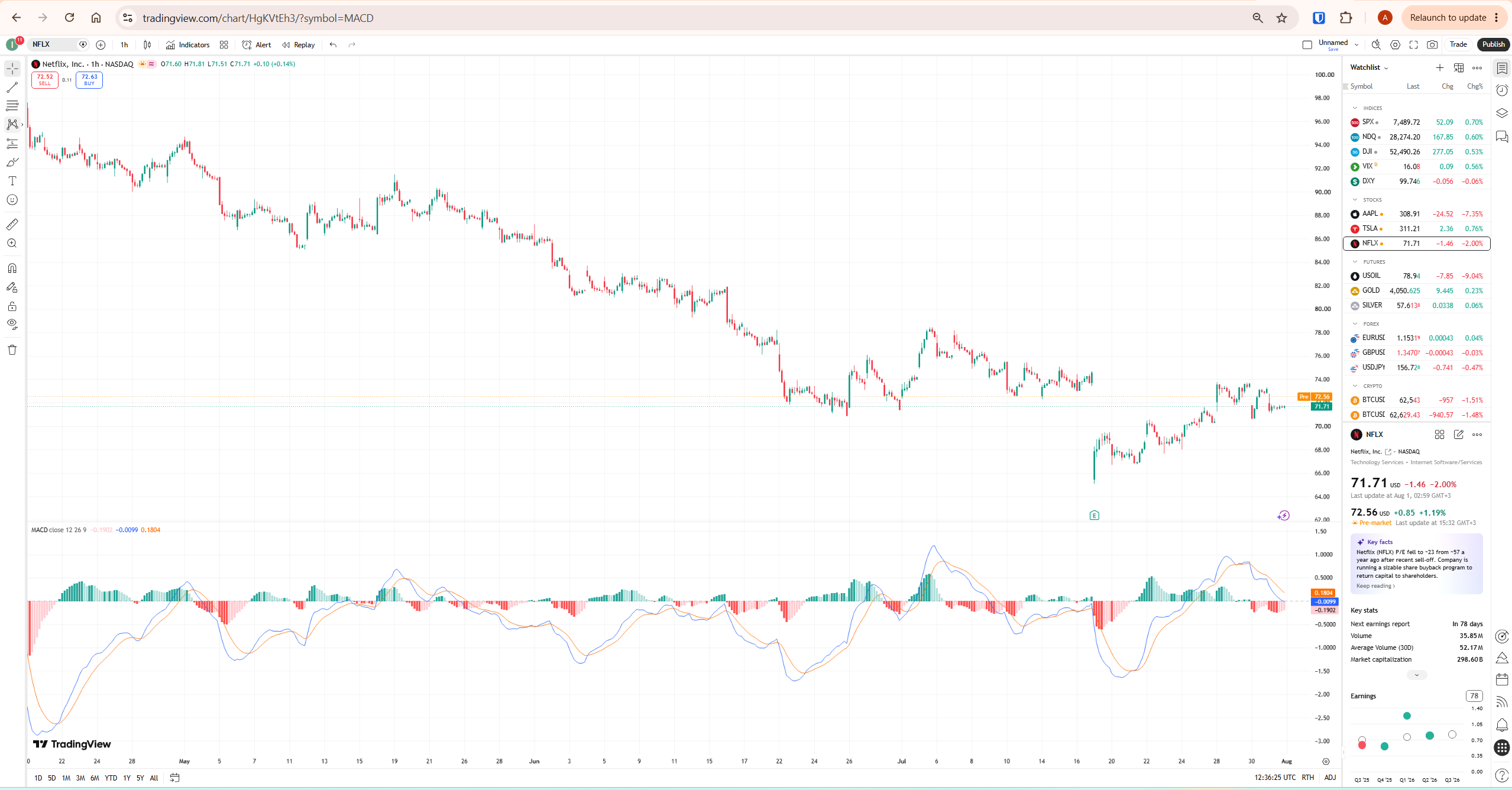

It consists of three components plotted in a panel below the price chart: the MACD line, the signal line, and the histogram. Together they turn a comparison of two moving averages into a visual momentum read that is easier to act on than watching the raw EMAs cross on the price chart itself.
The MACD Formula Explained
| Component | Formula | What It Does |
|---|---|---|
| MACD Line | 12-period EMA − 26-period EMA | The core momentum line — shows how far apart the fast and slow averages currently are |
| Signal Line | 9-period EMA of the MACD Line | A smoothed version of the MACD line used to generate crossover signals |
| Histogram | MACD Line − Signal Line | Visualises the gap between the two lines — expanding bars signal building momentum, shrinking bars signal fading momentum |
The default settings — 12, 26, 9 — are the industry standard and are what almost every trader means when they refer to “MACD” without specifying custom parameters. Because it is the widely used default, testing against 12-26-9 first lets you observe how the broader market typically behaves around MACD signals before considering any customisation.
How to Add MACD on TradingView
It is a built-in TradingView indicator and takes three clicks to add — no subscription required.
- Open any chart on TradingView
- Click the Indicators button in the top toolbar
- Type “MACD” in the search box and select “Moving Average Convergence Divergence” listed under the Technicals section (not a community script)
It appears immediately in a panel below the chart with default settings — Fast Length 12, Slow Length 26, Signal Smoothing 9.
Note that on the free Basic plan, TradingView limits the total number of indicators applied per chart simultaneously. If MACD does not appear because you have reached your limit, remove another indicator first — verify current plan limits at tradingview.com/pricing.
MACD Settings on TradingView
Right-click the MACD indicator and select Settings to adjust the three core inputs.
| Setting | Default | Effect of Lowering It | Effect of Raising It |
|---|---|---|---|
| Fast Length | 12 | MACD line reacts faster to recent price changes | MACD line smooths further, reacting more slowly |
| Slow Length | 26 | Narrows the gap with the fast length, producing more frequent crossovers | Widens the gap, producing fewer but more significant crossovers |
| Signal Smoothing | 9 | Signal line reacts faster, generating earlier but noisier crossover signals | Signal line smooths further, generating later but more reliable crossover signals |
Shorter settings react more quickly to price changes and suit scalping or day trading, but generate more false signals. Longer settings produce smoother, less frequent signals more suited to swing or position trading. The default 12-26-9 is a reasonable starting point across most timeframes and assets — changing it without a clear reason risks overfitting to a specific chart’s recent history rather than genuinely improving the signal.
How to Read MACD Signals
| What You See | What It Signals | How to Use It |
|---|---|---|
| MACD line crosses above signal line | Bullish crossover — upward momentum strengthening | A common long entry trigger, stronger when confirmed by price structure or volume |
| MACD line crosses below signal line | Bearish crossover — downward momentum strengthening | A common short entry trigger or exit signal for existing longs |
| MACD crosses above/below the zero line | The 12 and 26 period EMAs have crossed — a broader trend shift | Often used as a second layer of confirmation alongside candlestick patterns or trendline breaks |
| Histogram bars expanding | The gap between MACD and signal line is widening — momentum building | Supports staying in a position through minor pullbacks |
| Histogram bars shrinking toward zero | The gap is narrowing — momentum fading, a crossover may be imminent | A warning to tighten stops or prepare for a potential reversal signal |
The zero-line cross is a broader, slower signal than the MACD/signal line crossover, since it reflects the 12 and 26 period EMAs themselves crossing rather than the faster signal line. Some traders use it as validation: only take signal line crossovers in the direction that agrees with the current zero-line position, since this filters out counter-trend signals during a broader trend.
MACD Divergence: Regular and Hidden
Beyond crossovers, MACD divergence — where price and the MACD line move in opposite directions — is one of the indicator’s most widely used advanced signals.
| Type | Price Action | MACD Action | Signal |
|---|---|---|---|
| Bullish Divergence | Lower low | Higher low | Downward momentum weakening — potential reversal upward |
| Bearish Divergence | Higher high | Lower high | Upward momentum fading — potential reversal downward |
MACD divergence follows the same logic as RSI divergence — the price structure and the momentum oscillator disagree, signalling that the current move is losing conviction even though price itself has not reversed yet. See our TradingView RSI Divergence guide for the fuller explanation of how to read and confirm divergence signals, since the same principles and pitfalls apply directly to MACD divergence.
Best MACD Settings by Timeframe
The indicator works on every liquid market — forex, stocks, crypto, futures, and commodities — because its underlying moving average relationship applies to any time-series price data. Matching the timeframe to your holding period improves signal quality significantly.
| Trading Style | Recommended Timeframe | Notes |
|---|---|---|
| Day trading | 15M to 1H | Default 12-26-9 settings generally hold up well; avoid 1M and 5M charts where MACD produces excessive noise |
| Swing trading | 4H to Daily | The most commonly used range for MACD crossover and divergence signals |
| Position trading | Daily to Weekly | Slower, more significant signals — fewer crossovers but each carries more structural weight |
Signals should generally complete within your typical trade duration. A day trader watching a weekly MACD crossover is watching a signal that plays out over a timeframe far longer than their actual holding period, which makes the signal largely irrelevant to their entries and exits.
Combining MACD with Other TradingView Tools
It is most reliable when a signal is confirmed by a second, independent tool rather than acted on alone.
MACD and price structure: A bullish MACD crossover occurring as price breaks above a major resistance level, or holds a structural higher low, carries considerably more weight than the same crossover occurring in open space with no nearby structure.
MACD and RSI: Confirming a MACD crossover with RSI momentum reduces false signals — a bullish crossover with RSI also turning upward from oversold territory carries more conviction than the crossover alone. See our TradingView RSI Divergence guide for the full setup.
MACD and trend tools: Combining MACD with a trend-following indicator such as Supertrend helps filter which crossovers to act on — taking only the crossovers that agree with the prevailing trend direction may improve signal quality by filtering out some counter-trend setups. See our TradingView Supertrend guide for the full setup.
MACD and volume: A crossover accompanied by a clear increase in volume carries more conviction than the same crossover on thin volume, which is more likely to be a false signal that reverses quickly.
Setting MACD Alerts on TradingView
Rather than watching charts continuously for a crossover, TradingView’s alert system can notify you automatically.
- Add MACD to your chart
- Right-click the indicator name and select Add Alert
- Choose the condition — MACD Line crossing Signal Line, or crossing the zero line
- Set your notification method — push, email, or webhook depending on your plan
- Use Once Per Bar Close frequency to avoid multiple alerts firing on the same crossover during intrabar volatility
For the complete alert setup process, see our TradingView Alerts Explained guide. Alert capacity and webhook availability depend on your plan — verify current limits at tradingview.com/pricing.
Common MACD Mistakes on TradingView
The most common mistake is treating it as a leading indicator. Because it is built entirely from moving averages, it is inherently lagging — every signal confirms that a shift in momentum has already begun, not that one is about to begin. Traders who expect MACD to call an exact top or bottom are asking the indicator to do something it is not designed to do.
The second mistake is mixing timeframes inconsistently — checking a signal on the 1H chart but managing the trade based on the daily chart’s structure, or vice versa. Confirming signals across a higher and lower timeframe deliberately is useful; switching between timeframes inconsistently to find whichever one currently agrees with a desired trade is not.
The third mistake is overfitting settings to a specific chart’s recent history. Adjusting the 12-26-9 defaults until a handful of past losing trades disappear on one chart creates the illusion of an optimised setting that has no genuine predictive edge going forward — it has simply been curve-fitted to noise that already happened.
The fourth mistake is relying on MACD alone without confirming signals against price structure, volume, or a second indicator. A crossover in isolation is a relatively weak signal; the same crossover aligned with a resistance break or a volume spike is considerably more actionable.
Honest Limitation: Why MACD Lags
It is a lagging indicator by design, and this is not a flaw specific to TradingView’s implementation — it is a structural property of any indicator built from moving averages. Because both the MACD line and signal line are derived from EMAs of past price data, a crossover can only occur after price has already moved enough to shift those averages. By the time a crossover confirms, a portion of the move it is signalling has typically already happened.
No adjustment to the Fast Length, Slow Length, or Signal Smoothing settings eliminates this lag entirely — shortening the periods reduces the delay somewhat but increases false signals, while lengthening them reduces false signals but increases the delay. This is an unavoidable trade-off, not something a single “correct” setting resolves.
A further limitation is that MACD, like any single momentum oscillator, can generate persistent false signals during genuinely choppy, range-bound markets — repeated crossovers with no follow-through in either direction. Recognising when a market has shifted from trending to ranging, and reducing reliance on MACD crossovers during that period, is as important as reading the signal itself.
The responsible framing: use it to confirm and measure momentum shifts already underway, combined with price structure and at least one other independent signal, rather than as a standalone predictive system. For deeper context on backtesting any MACD-based approach before trading it live, Investopedia’s backtesting guide covers the fundamentals of testing a strategy against historical data responsibly. For an independent, third-party assessment of TradingView’s full charting toolkit, the StockBrokers.com TradingView review provides useful additional context.
What To Do Next
Before turning a MACD idea into a live strategy, review it on historical charts and, where possible, test the rules systematically. Our TradingView Strategy Tester guide explains how to evaluate rule-based setups before risking real capital.
Open TradingView, add MACD with default settings to an instrument you follow regularly, and scroll back through at least three months of price history. Count how many crossovers led to a genuine, sustained move versus how many were followed by continued choppiness. This exercise will show you directly how the indicator behaves on your specific instrument before you risk any capital acting on a live signal.
Create a free TradingView account to add MACD to your charts at no cost.
Related TradingView Guides
- TradingView Review 2026 — complete platform overview including all indicator features
- TradingView RSI Divergence — the same divergence principles applied to a different momentum oscillator
- TradingView Supertrend — filtering MACD crossovers using a trend-following confirmation tool
- TradingView Bollinger Bands — combining volatility context with MACD momentum signals
- TradingView Alerts Explained — automating notifications for MACD crossovers
- TradingView Strategy Tester — backtesting MACD-based strategies before live use
Frequently Asked Questions
What is MACD on TradingView?
MACD (Moving Average Convergence Divergence) is a built-in, free TradingView indicator that measures the relationship between a 12-period and 26-period exponential moving average. It plots a MACD line, a signal line (9-period EMA of the MACD line), and a histogram showing the gap between them, giving traders a visual read on momentum shifts.
How do I add MACD on TradingView?
Click the Indicators button in the top toolbar of any TradingView chart, type “MACD” in the search box, and select “Moving Average Convergence Divergence” listed under the Technicals section. The indicator adds immediately with default settings of Fast Length 12, Slow Length 26, and Signal Smoothing 9. Free Basic plan accounts have a limit on the number of indicators applied per chart simultaneously — remove another indicator first if you have reached your limit.
What are the best MACD settings?
The TradingView default of 12, 26, 9 is the industry standard and a reasonable starting point for most instruments and timeframes. Shorter settings react faster and suit scalping or day trading but generate more false signals. Longer settings produce smoother, less frequent signals more suited to swing or position trading. Always test any custom setting against historical data for your specific instrument before applying it live, since a setting that appears optimal on past data can simply reflect overfitting rather than a genuine edge.
Is MACD good for day trading?
MACD is widely used in day trading, typically on 15-minute to 1-hour charts with default settings. Because it is a lagging indicator, it is best used to confirm momentum already underway rather than to predict an entry ahead of time. Combining MACD crossovers with price structure, volume, or a second indicator improves reliability considerably compared to using MACD signals in isolation.
Is MACD free on TradingView?
Yes. MACD is a built-in TradingView indicator available at no cost on the free Basic plan. At the time of writing it does not require a paid subscription. Note that Basic plan accounts have a limit on the total number of indicators that can be applied per chart simultaneously — always verify current plan limits at tradingview.com/pricing.
What is MACD divergence?
MACD divergence occurs when price and the MACD line move in opposite directions at swing points. Bullish divergence — price making a lower low while MACD makes a higher low — signals weakening downside momentum and a potential reversal upward. Bearish divergence — price making a higher high while MACD makes a lower high — signals weakening upside momentum. Divergence is a useful warning signal but should be confirmed with price action before being treated as a trade trigger, since divergence can persist for some time before a reversal actually occurs.
MACD vs RSI — what is the difference?
Both are momentum indicators, but they measure different things. MACD compares two moving averages to show the relationship between short-term and longer-term trend direction, and is generally used for identifying momentum shifts and crossovers. RSI measures the speed and magnitude of recent price changes on a bounded 0–100 scale, and is generally used for identifying overbought and oversold conditions. Many traders use both together — MACD for the broader momentum trend and RSI for gauging how extended the current move has become. See our TradingView RSI Divergence guide for the full RSI-specific breakdown.
